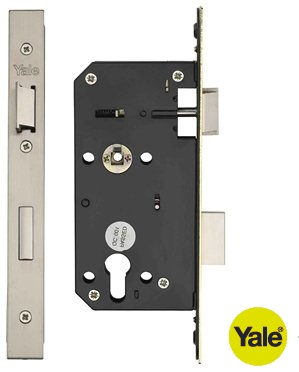

Yale 38D0 Series EN Mortise Lock

Yale 38D0 series stainless steel mortise lock case meet the European standard EN 12209:2003 and passed 200,000 testing cycles. Together with Genuine Yale Euro Profile Cylinder, 38D0 mortise locks provide utmost key security.

Standard Mortise Lock Case is ideal for door with thickness of 38mm ~ 50mm (also available on application up to 55mm thick), standard backset 55mm and center to center 72mm. It can fit with wide range of door lever handles, no matter which type your home is – modern apartment or uptown villas.

• Standard: EN12209:2003

• Testing Cycles: More than 200,000 cycles tested

• Materials:

  – Latch and Bolt: Stainless steel

  – Faceplate and Strike: Stainless Steel or Brass

• Backset: 55mm

• C to C: 72mm

• Function: Entrance, Bathroom, Passage & Dummy Trims
