Door Bottom Sweep Seal

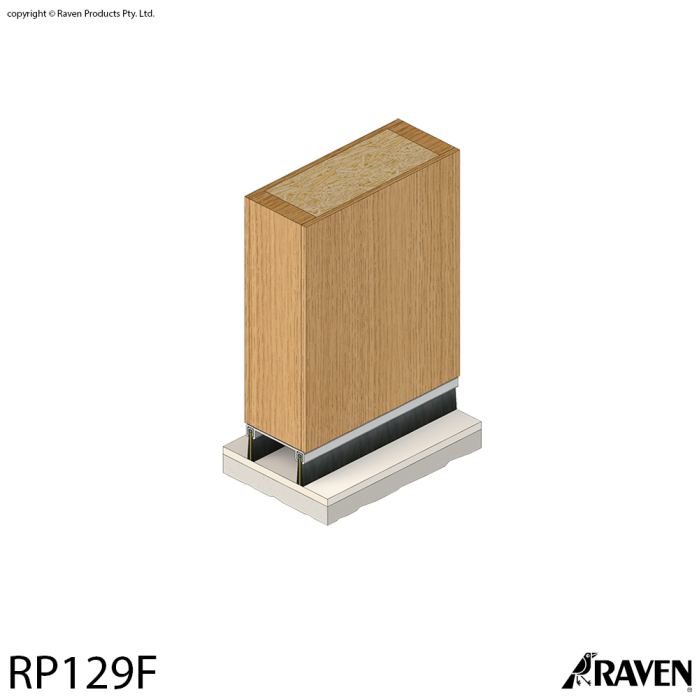

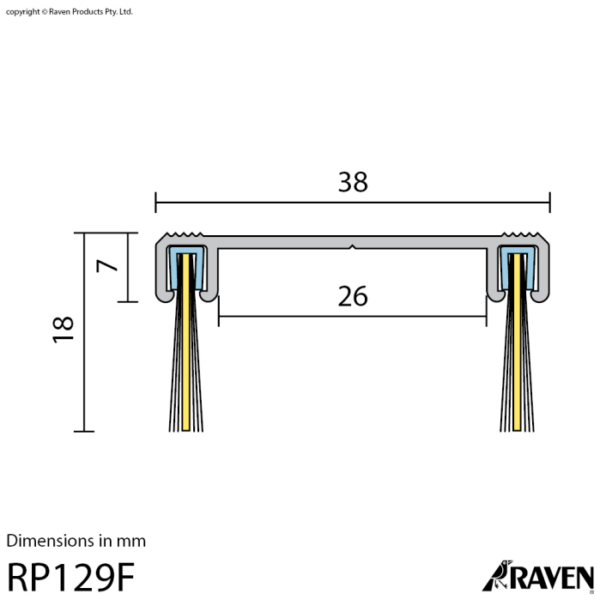

Raven RP129F Door Bottom Sweep Seal
RP129F
| A heavy duty medium temperature smoke and weather door bottom seal. The RP129Si can be checked out or drilled to accommodate pivot hardware whilst still providing a continuous seal.
Use in conjunction with RP130Si and a Raven threshold plate (essential). Location: Bottom of double butt hinged or centre pivot double acting doors. Min/Max Gap: 14mm to 18mm. Finish: Satin clear (silver) anodised aluminium (15µm) or paint at extra cost. Fixing: Screw fix. Zinc plated, cross recess head S.T. screws supplied. Seal: RP3129Si. Light grey silicon rubber (SE). Sizes: Available in stock lengths. Approvals Fire Gasket flammability index 1 when tested to AS1530.2. Smoke AUS/NZ: NCC Spec. C3.4. NZ BC Compliance Doc. C/AS1 6.19.2(b). AS1530.7 & BS EN 1634-3 (similar to BS 476 section 31.1). Meets smoke leakage rates specified in AS6905 & EN 13501-2 “Sa”, “Sm”. Energy NCC Pt. 3.12.3.3 & J3.4. Durability Tested to over 1,000,000 operating cycles without failure. Registered Design. |
