Concealed Hinges
PBS Stainless Steel Heavy Duty Concealed Hinge
Features
• Fully Stainless Steel 304 Pin / Leaf / Bearings
• For Fire Doors / Commercial Doors

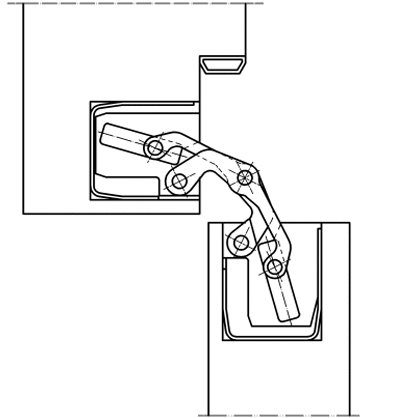

• 180° opening angle without pinching or damaging of frame during opening and closing
• For doors up to 80kg with 2 hinges installed
• Adjustable in 3-Dimensions
• Maintenance free slide bearings
• For wood, metal, or casing Door Frame installation
• Finishing: Antique Brass / Polished Brass / Satin Stainless Steel / Matte Black (Please Specify)
• Conforms to SS332:2007 Singapore Standards
Specifications
• Minimum door thickness: 1-3/8″

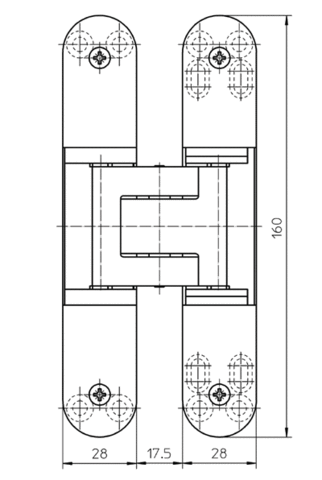

• Height: 6.28″ [160mm]
• Width: Frame & Leaf: 1.1″ [28mm]
• Depth: Frame: 1.21″ [31mm] & Leaf: 1.31″ [33.5mm]
