Dormakaba 392 Nightlatch Anti-Thrust

Dorma 392 Nightlatch Anti-Thrust Mortise Sash Lock

Features & Functions

Grade 3 – EN12209, approved for fire-rated doors with CE certificate

Lock case size DIN 182 51-1, closed case with sleeves, zinc plated, black painted

Lock case prepared for euro profile cylinder (DIN182 52) and standard fittings

Latch handing is reversible Anti-trust latch with snib

Latch, stainless, satin

Follower, stainless steel, 8mm square hole, mounted in drawn steel bushes

Centred forend, satin stainless steel 1.4401/AISI 316

Non-handed

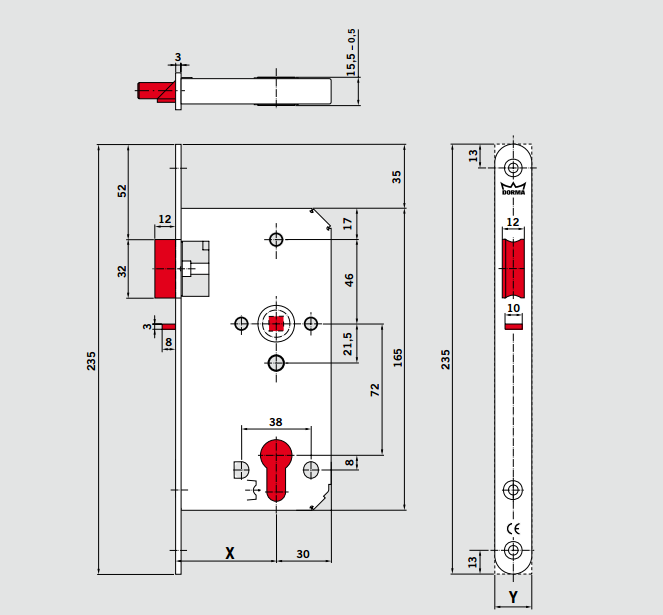

Backset

X-55mm Y-24mm
